Footswitches

Compatible Replacement Footswitches

Got a question about this product? Ask us!

Previous Next

Whether you just need an extra footswitch, or you lost one, you can easily pick up a SonicTone compatible footswitch for your SonicTone amp and keep on rocking!

The 5-button/4-channel footswitch is specifically for the 4-channel Loyalist and Patriot Mark II models.

Will a SonicTone footswitch work with other brand amplifiers with similar connectors?

Please see the FAQ section for more info.

Important Note: Footswitch cable is NOT included with the footswitch. Please see the footswitch cable product page to view the available footswitch cables. Do not supply any footswitch with more than the required voltage. Doing so may cause components within the footswitch to fail, such as the LEDs. SonicTone Amplification is not liable for any damages that result from attempting to use a SonicTone footswitch with another brand amplifier. SonicTone Amplification is also not liable for any damages that result from attempting to modify any footswitch cables or the footswitch itself.

Attention: The 5-button footswitch may power-on with multiple LEDs on at the same time. This is okay - just click one of the channel switches to clear the logic state and continue to use the footswitch as its intended.

Features & Specs

• High-quality LED lights
• High quality TRS jack (Single-button only)
• High quality 5-pin or 7-pin DIN jacks (2-button, 3-button and 5-button)
• Durable and rugged push-button footswitches

Amp Footswitches

• Delta Jr.
• Delta Deluxe
• Halfpint
• RC15
• SE-6
• SE-12

• Clarksdale (Orange/Green)
• '67 Special 50W (Orange/Red)
• RC30 (Orange/Green)
• Citrus (Orange/Green)
• '81 Special Standard/Lead (Orange/Green)
• Mercenary (Orange/Red)
• '67 Special Super Lead 100 (Orange/Red)
• Highway JP (Orange/Green)

• Highway
• '78 Special
• Snakecharmer

• Loyalist Mark II
• Patriot Mark II

Dimensions

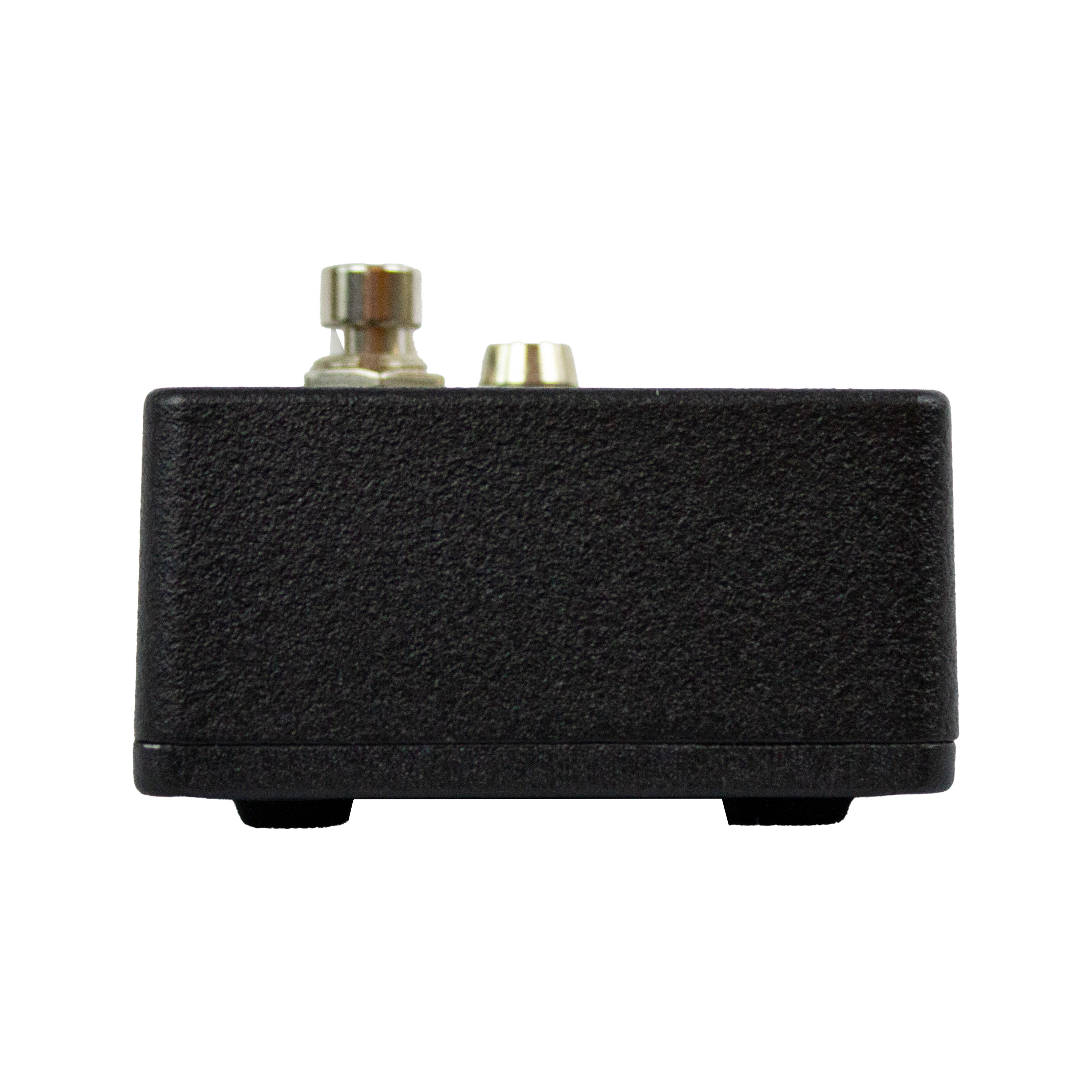

Single-Button, TRS (Orange):
    3.50" W x 2.00" H x 1.50" D, 1.50 Lbs

2-Button, 5-Pin DIN (Orange, Red):
    5.50" W x 2.00" H x 1.50" D, 2.00 Lbs

2-Button, 5-Pin DIN (Orange, Green):
    5.50" W x 2.00" H x 1.50" D, 2.00 Lbs

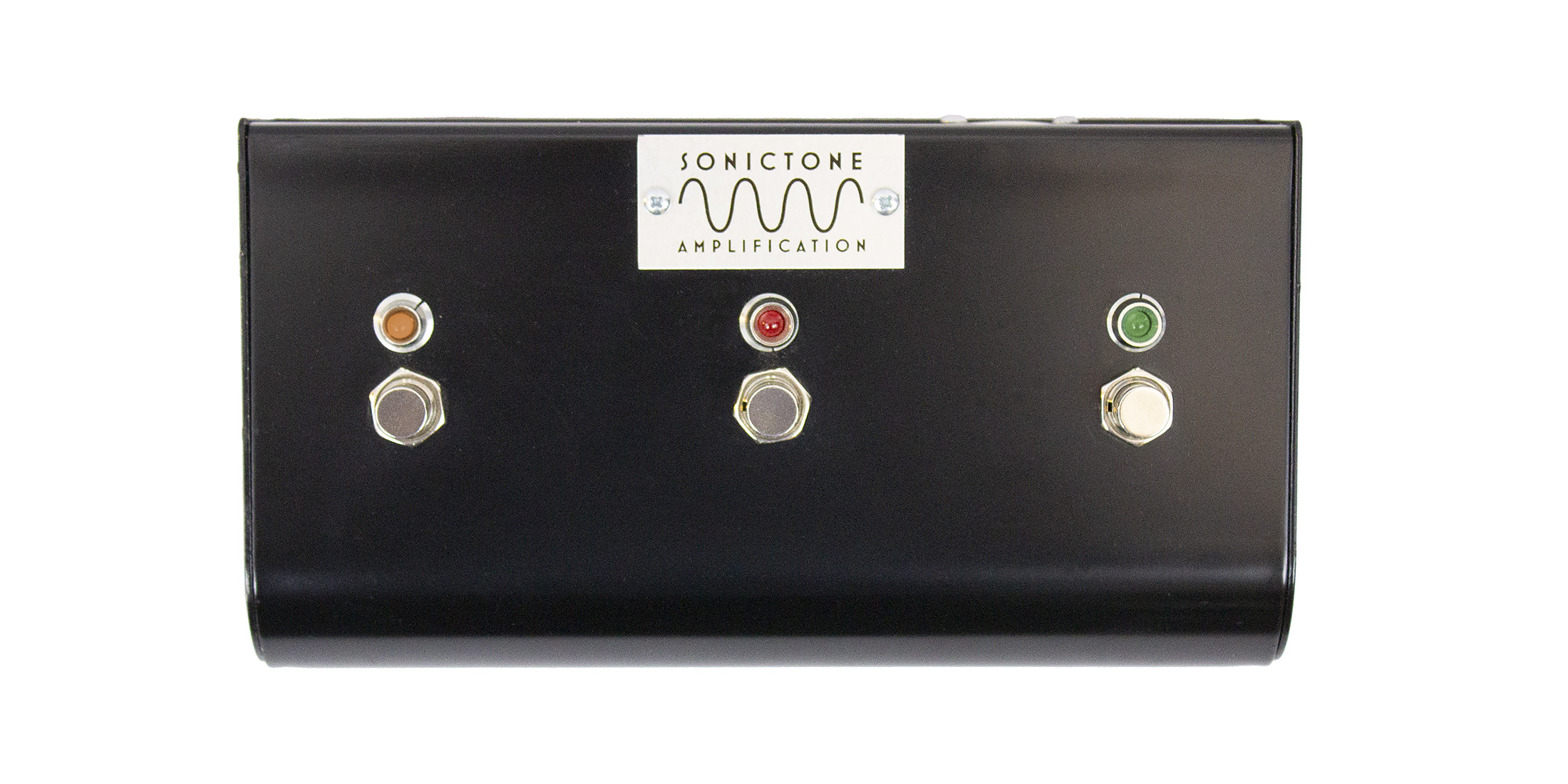

3-Button, 5-Pin DIN (Orange, Red, Green):
    8.00" W x 2.00" H x 1.50" D, 2.50 Lbs

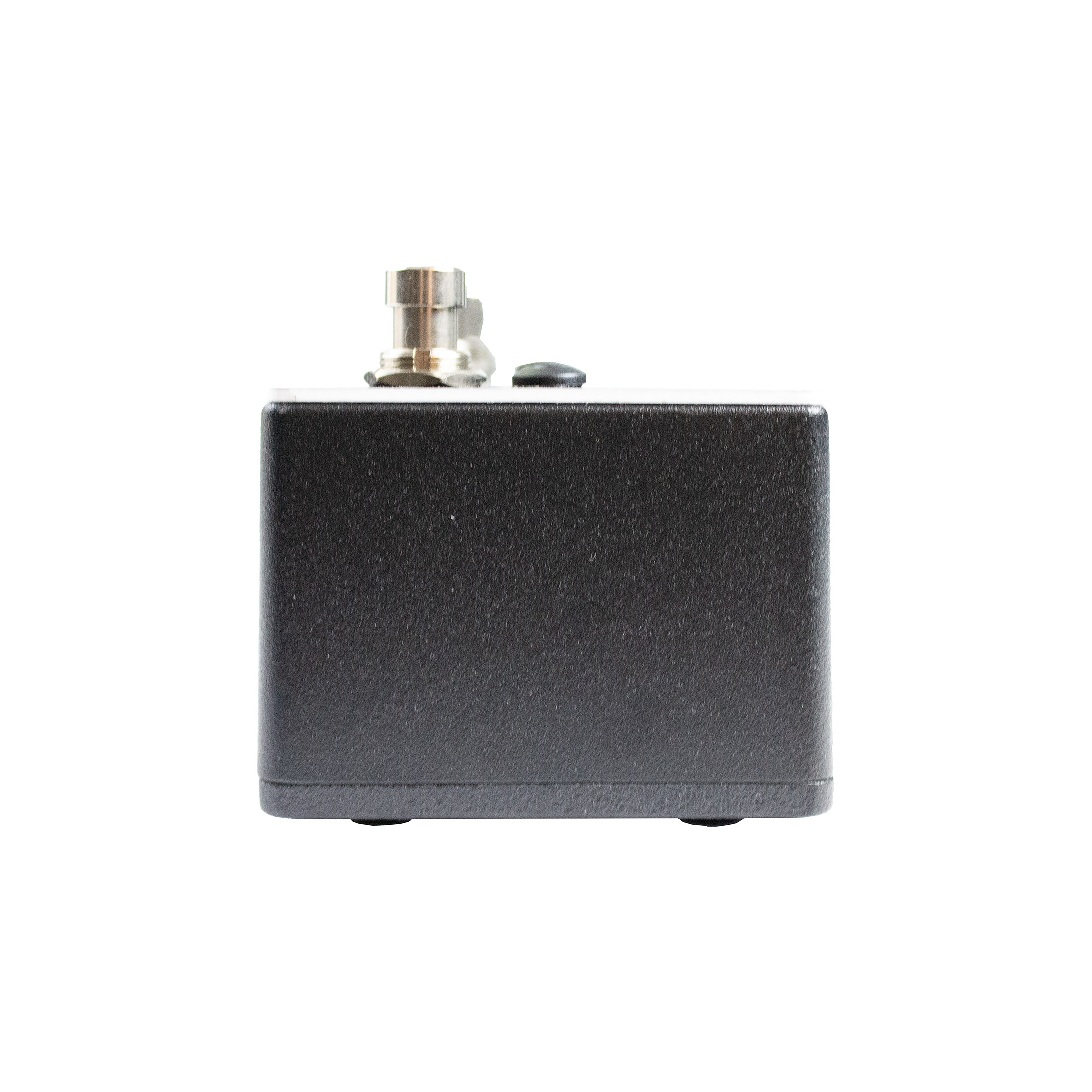

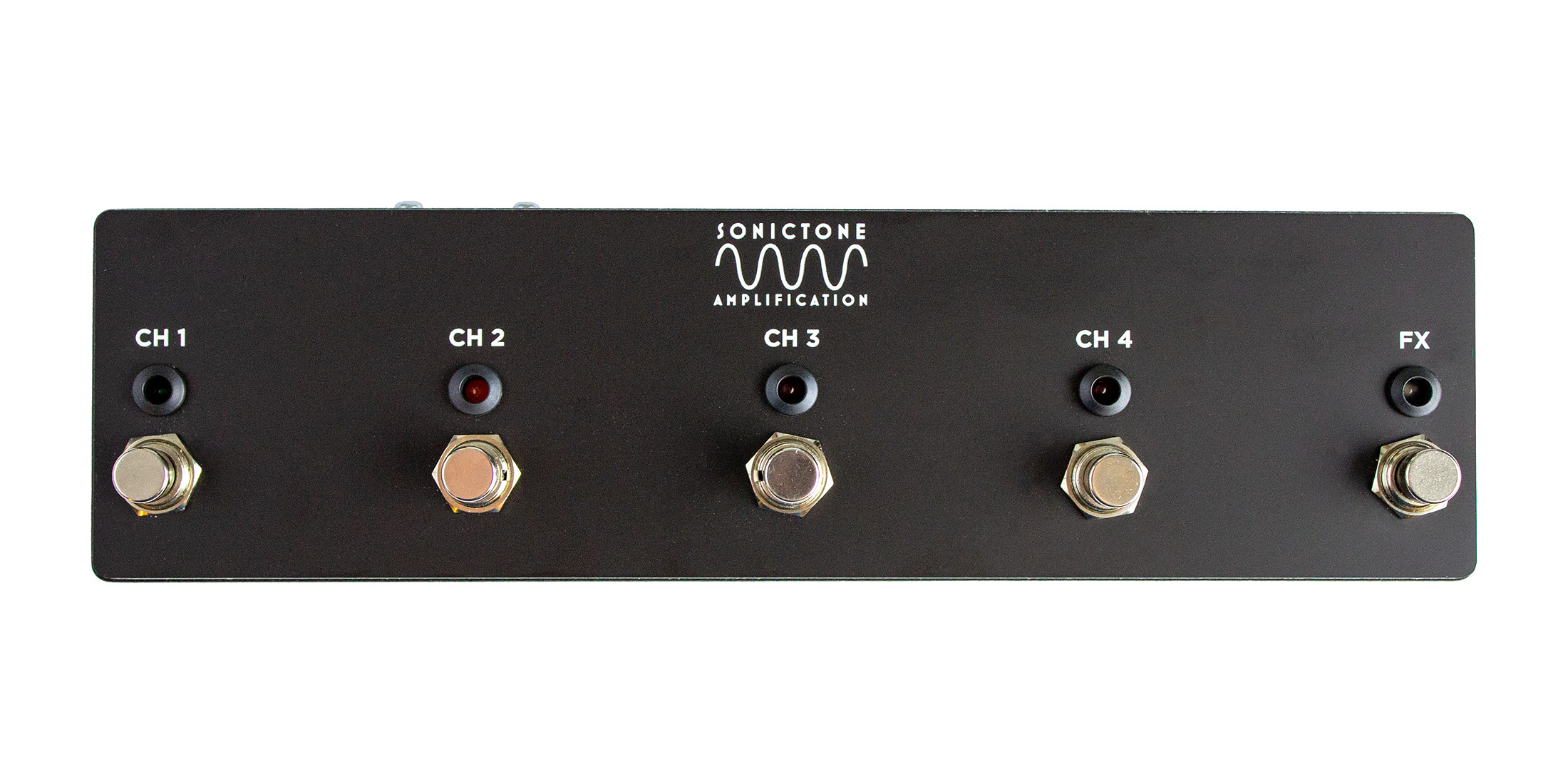

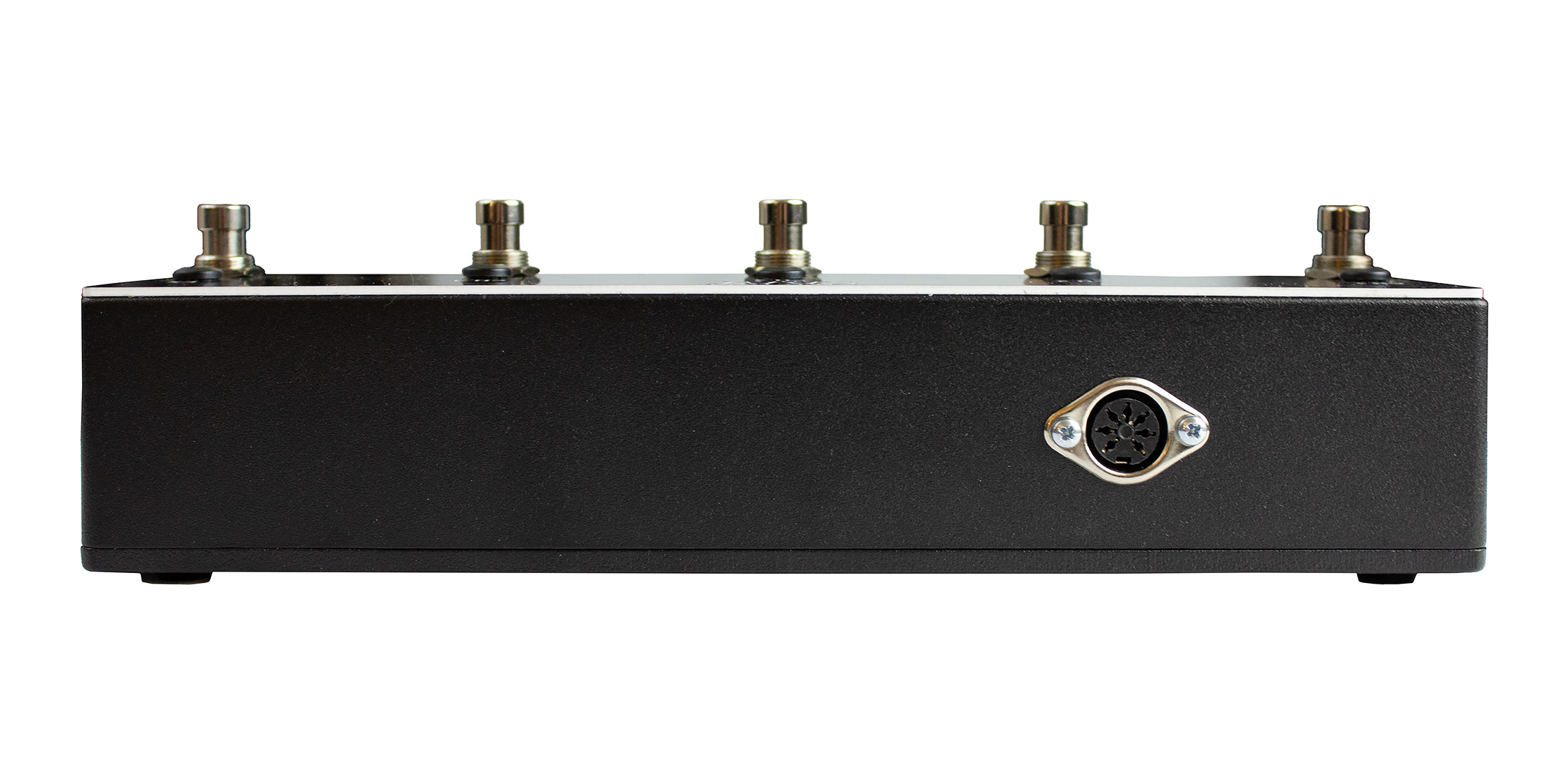

5-Button/4-Channel 7-Pin DIN:
    10.00" W x 2.00" H x 2.75" D, 2.50 Lbs

Documentation

• Footswitch Overview
