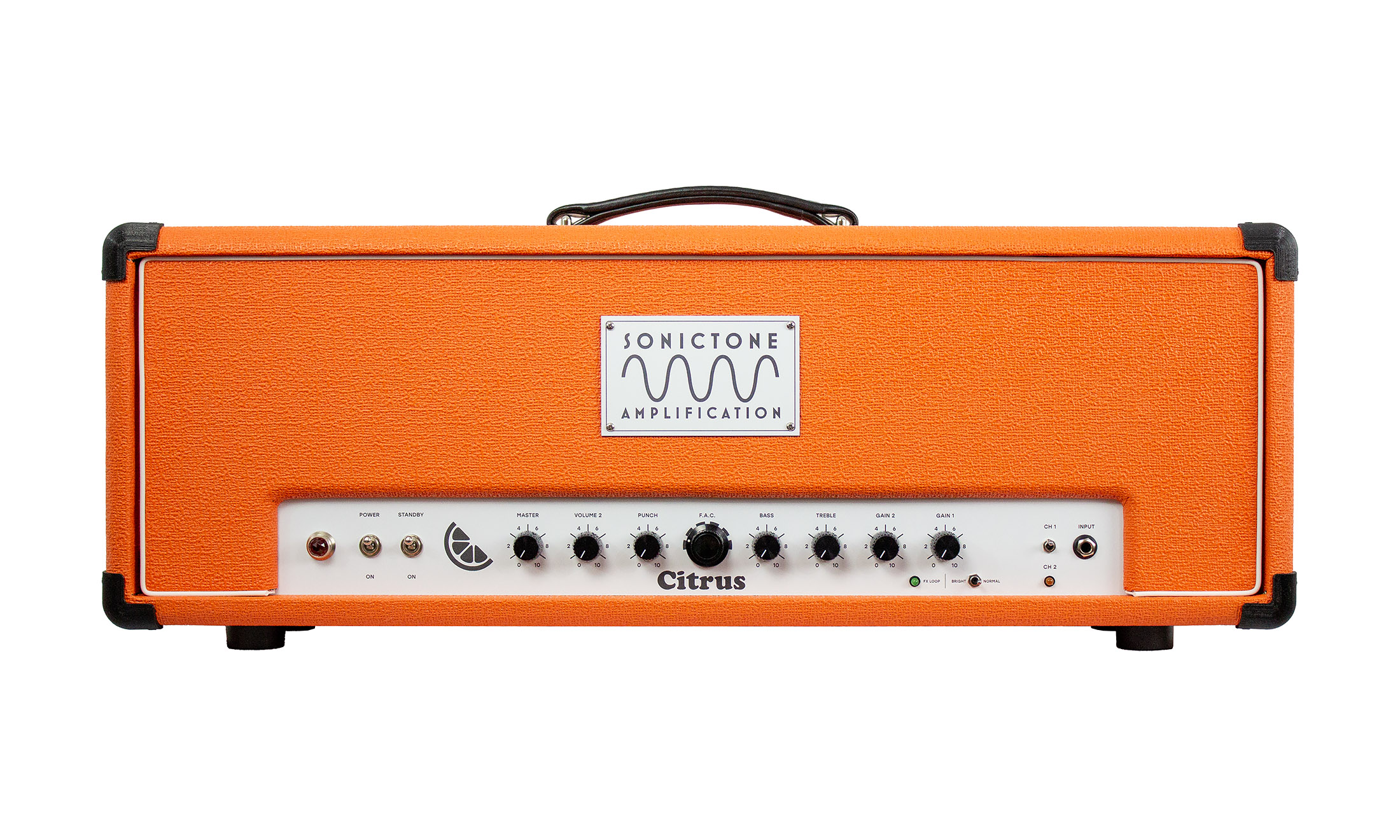

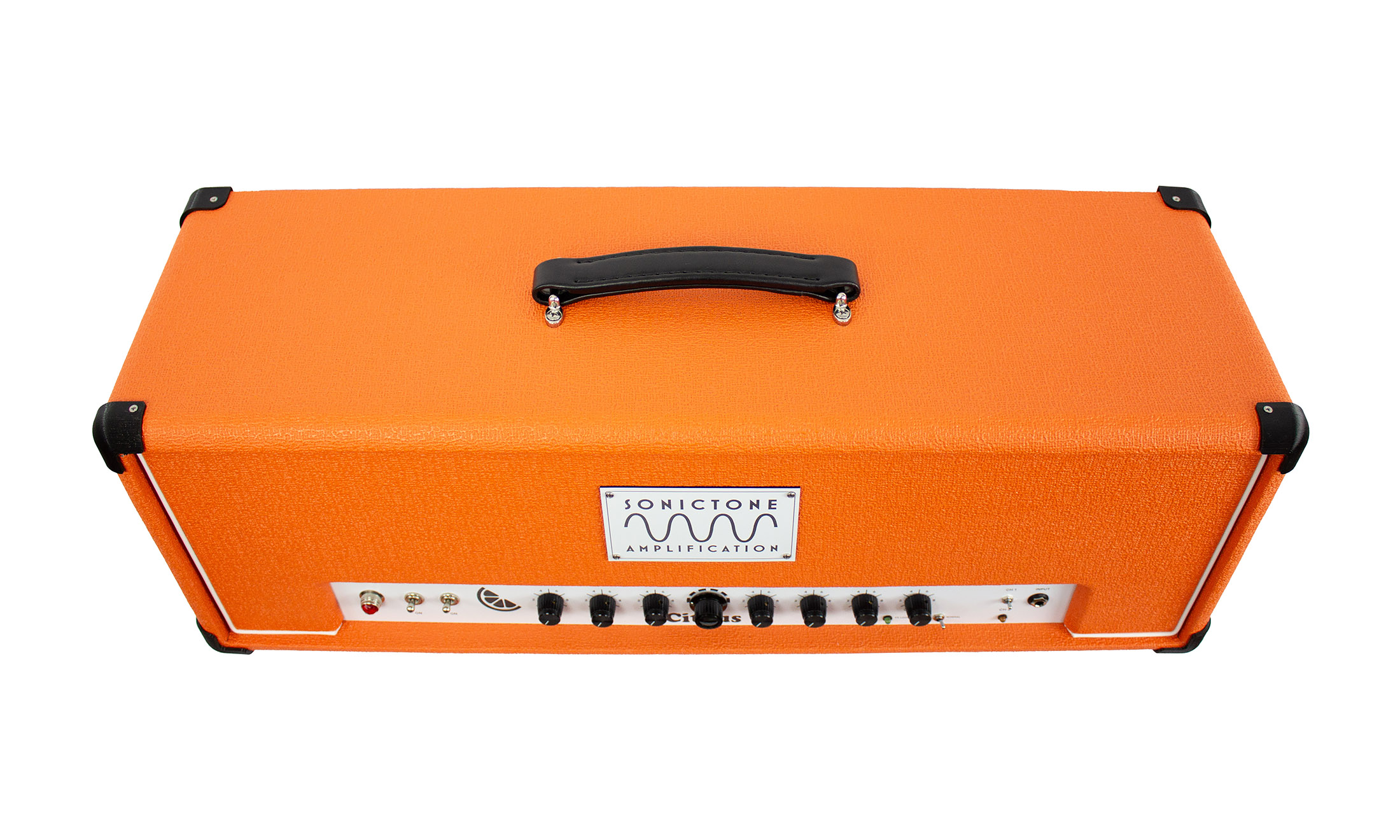

Citrus

British Rock Amplifier

Got a question about this product? Ask us!

Previous Next

By the time the late 60's came around, the burgeoning British amp market was already primed for a shake-up. That shake-up came from the circuit that's in the SonicTone Citrus amp. Based on an entirely different style of amp circuit, it hit the market with a thicker tone than other British amps - and it offered more gain. It came along just at the right time to power the up-and-coming hard rock and heavy metal scene of the 70's. And with its orange tolex and funky look, it was poised to take its place among some of the best in British tube amps.

The SonicTone Citrus is a modern take on that circuit, keeping inline with the original, but adding modern features like channel switching and an FX loop - all while delivering that undeniable heavy tone.

Available as a head, a 1x12 combo or a 2x12 combo.

Features & Specs

• Fixed-biased British-voiced amplifier

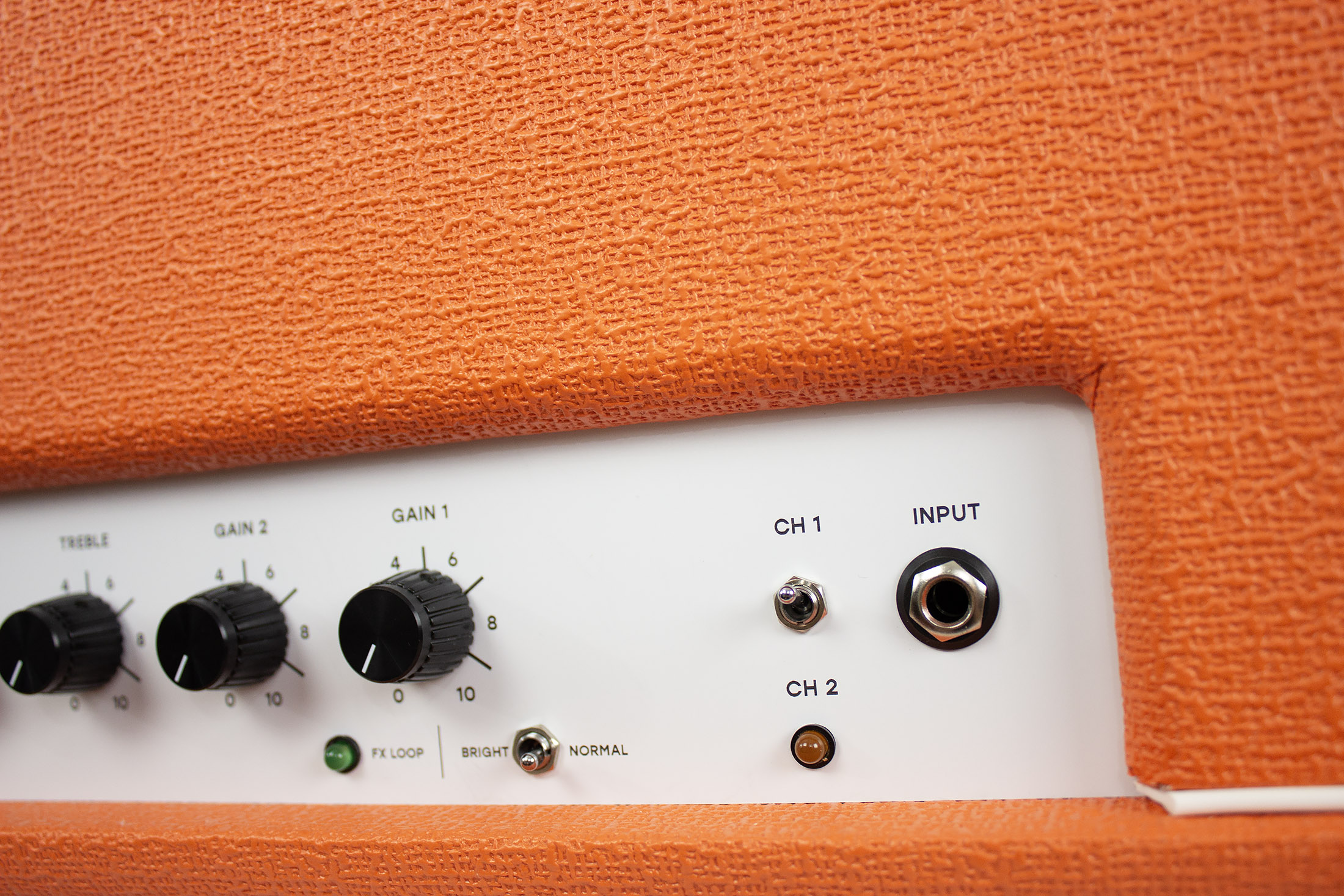

• 2 channels with independent gain controls, footswitchable

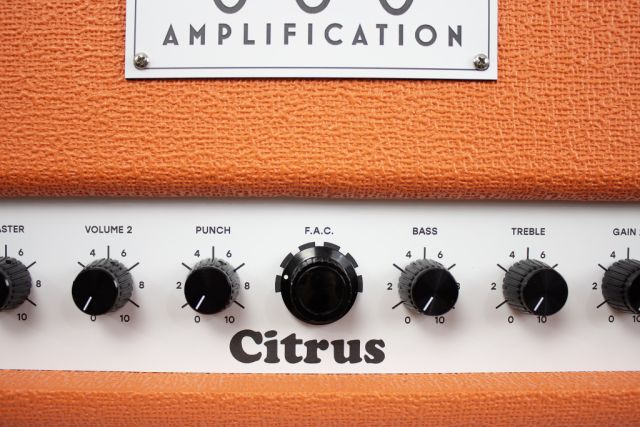

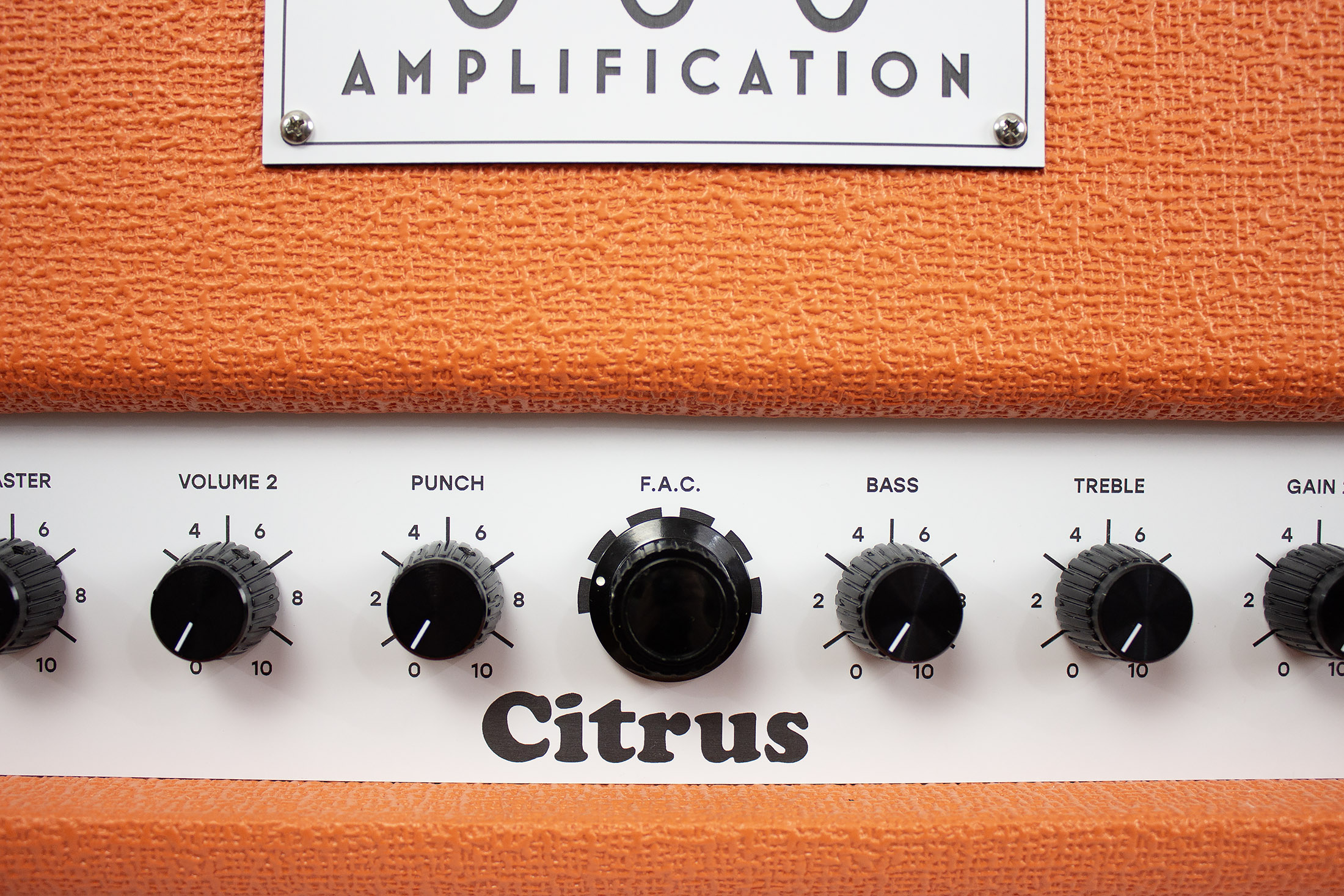

• Shared 2-band EQ with a "Punch" control
• F.A.C. - 6-way frequency adjustment control switch

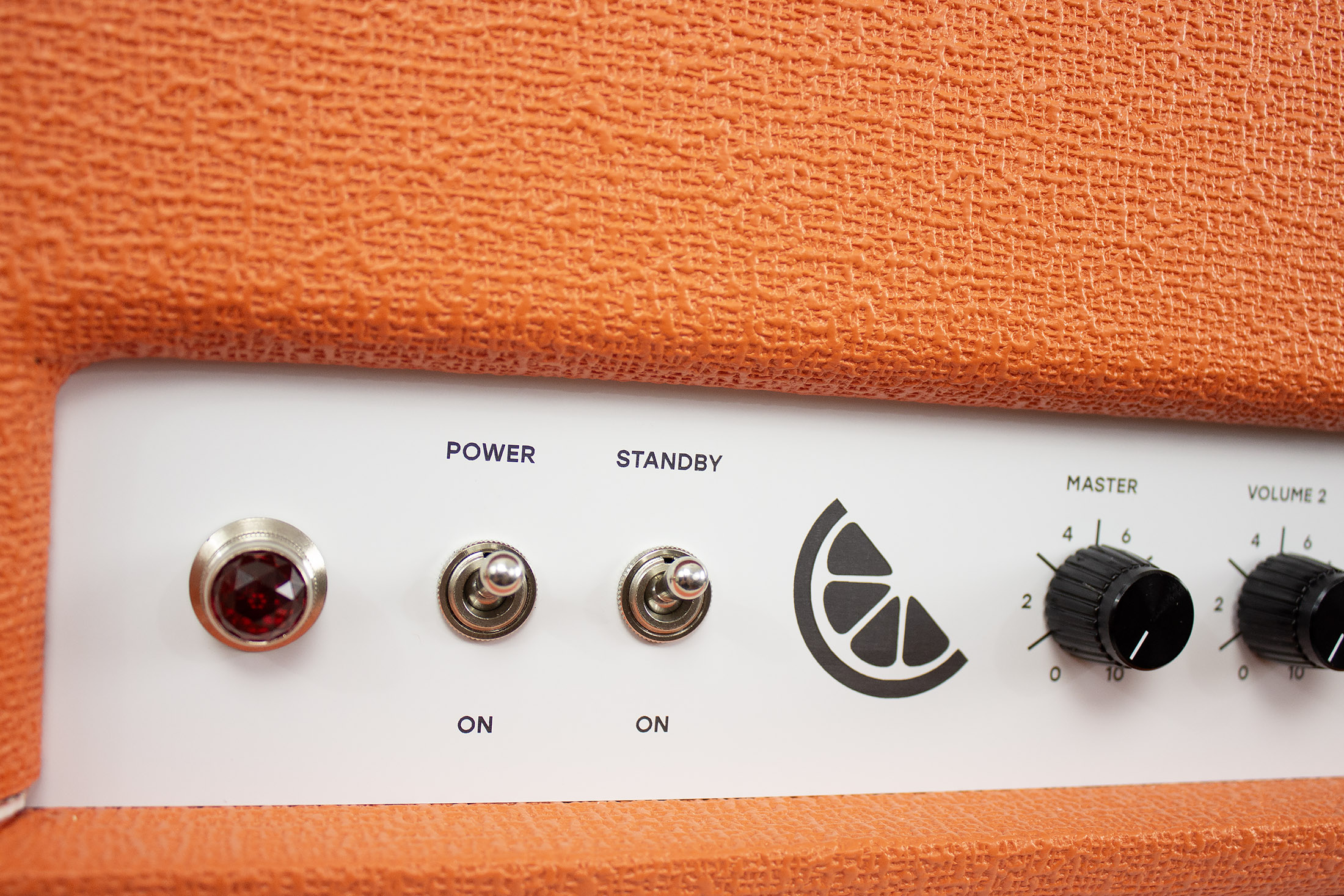

• Master volume
• Bright switch on channel 1

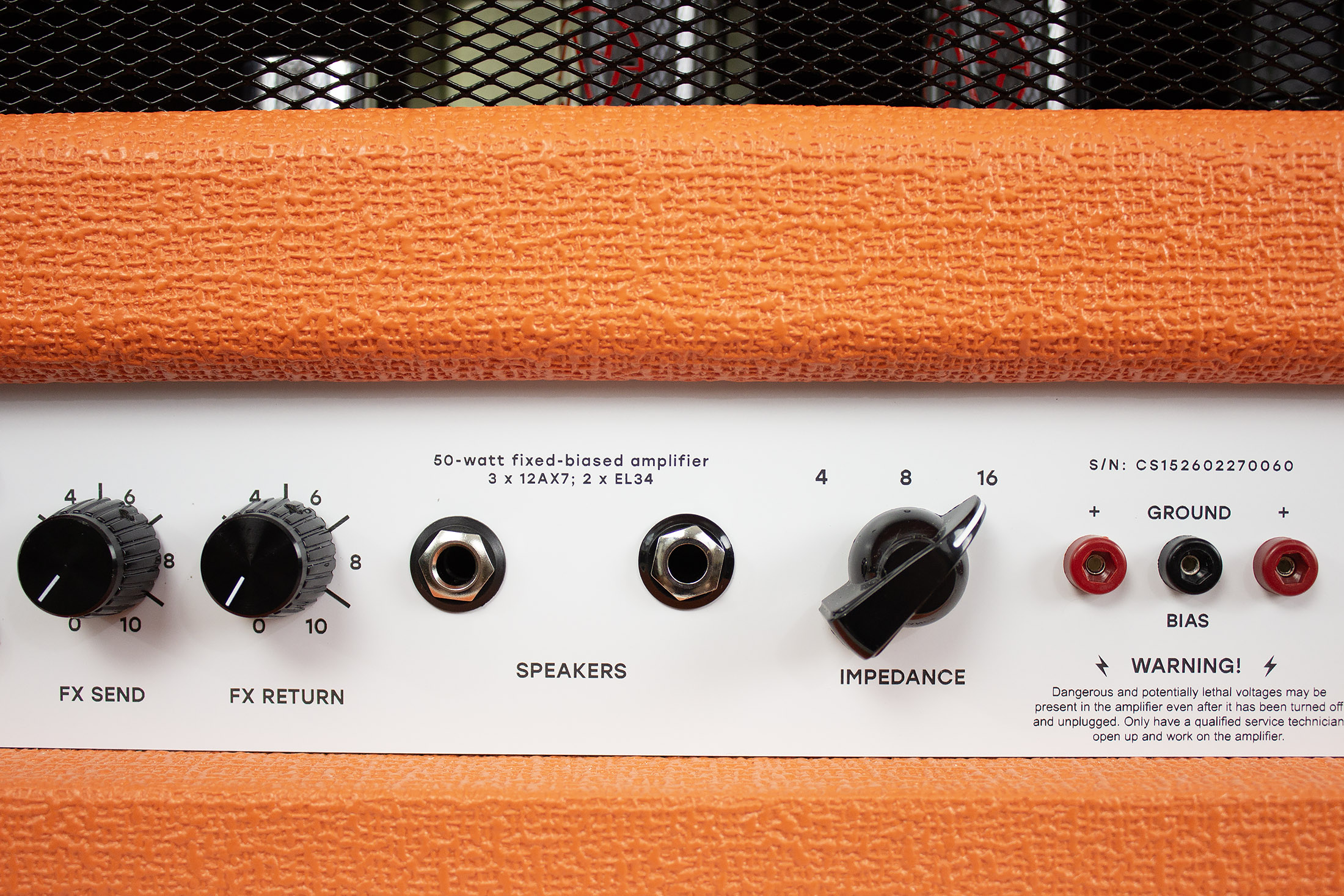

• 16, 8, 4 ohm impedance selector switch
• 12" Celestion speaker(s) (1x12 or 2x12 combo versions only)
• Birch plywood cabinet with finger-jointed construction

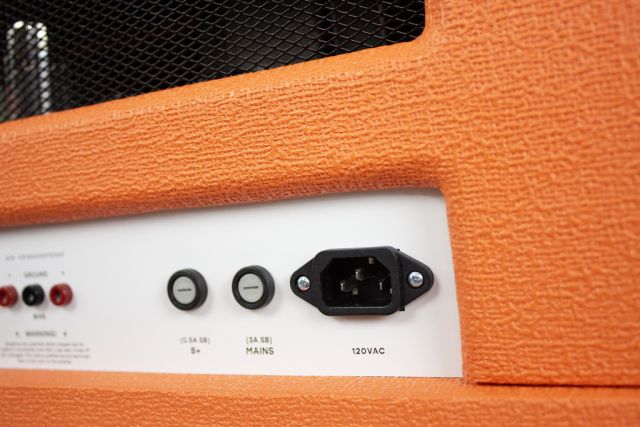

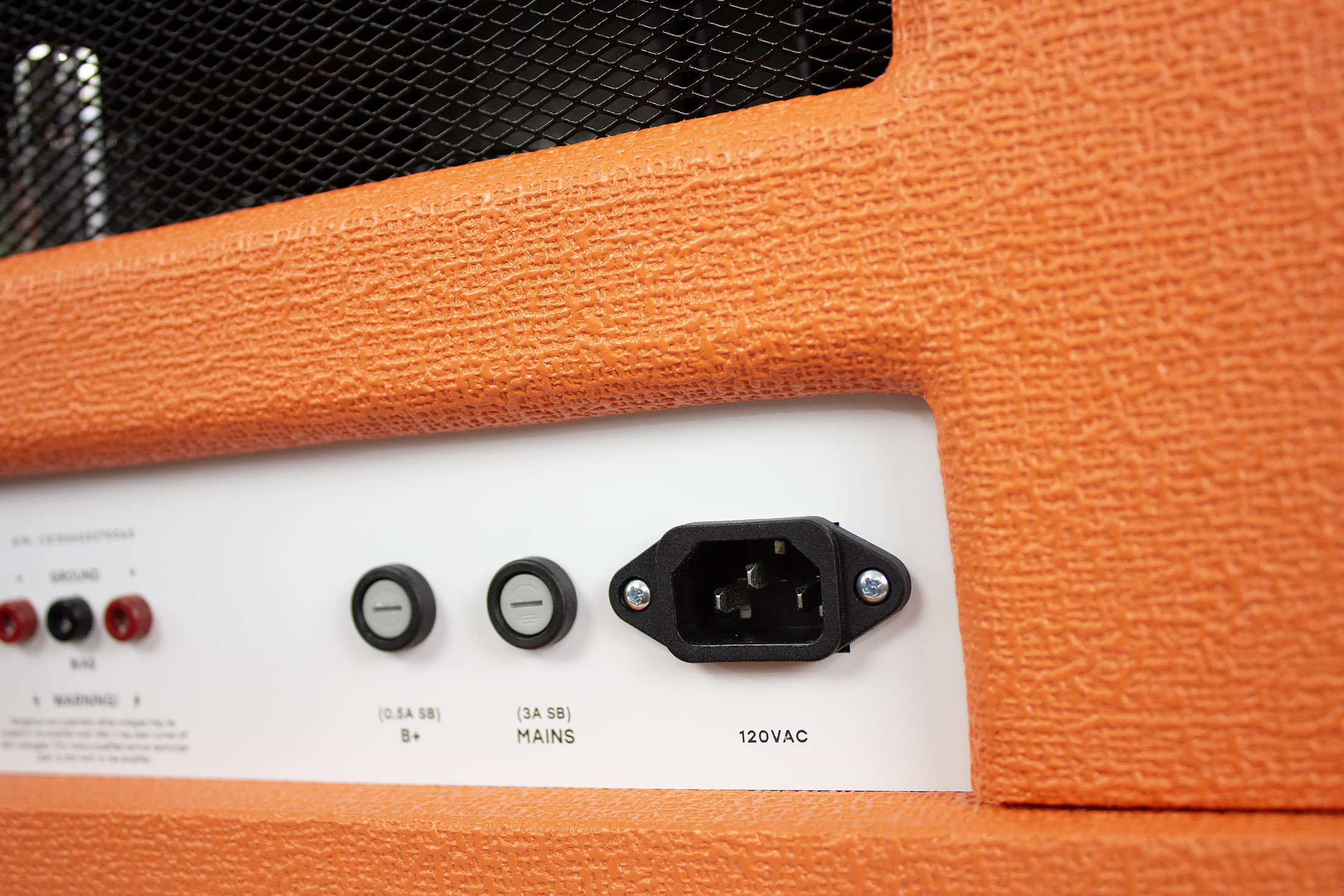

• AC Input: US standard IEC jack at 120V/60Hz

50-Watt Smallbox Model

• 3 x 12AX7; 2 x EL34
• Bypassable FX loop
• 1-button footswitch

50-Watt or 100-Watt Standard Model

• 3 x 12AX7; 2 x EL34 for 50W (or 4 x EL34 for 100W)

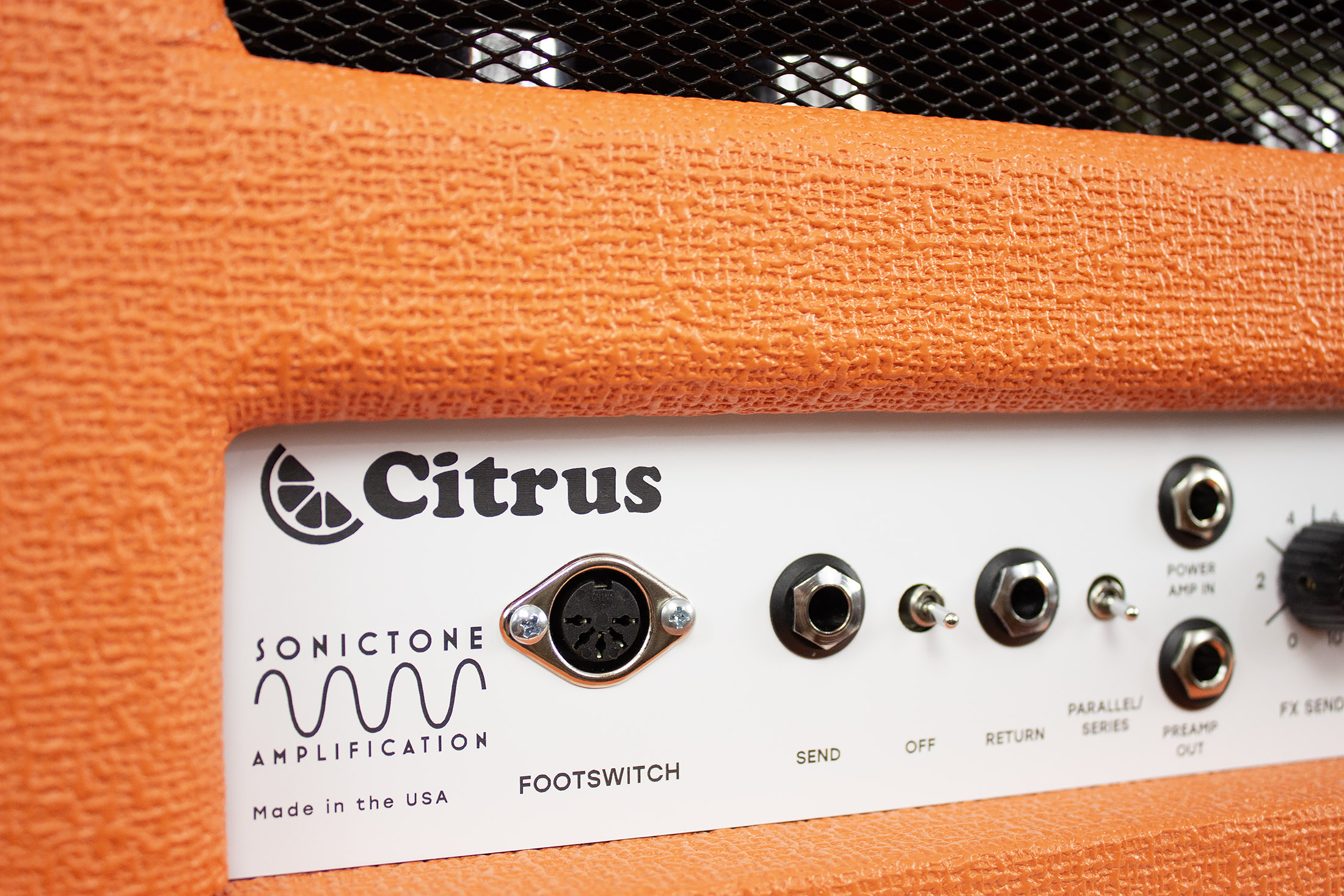

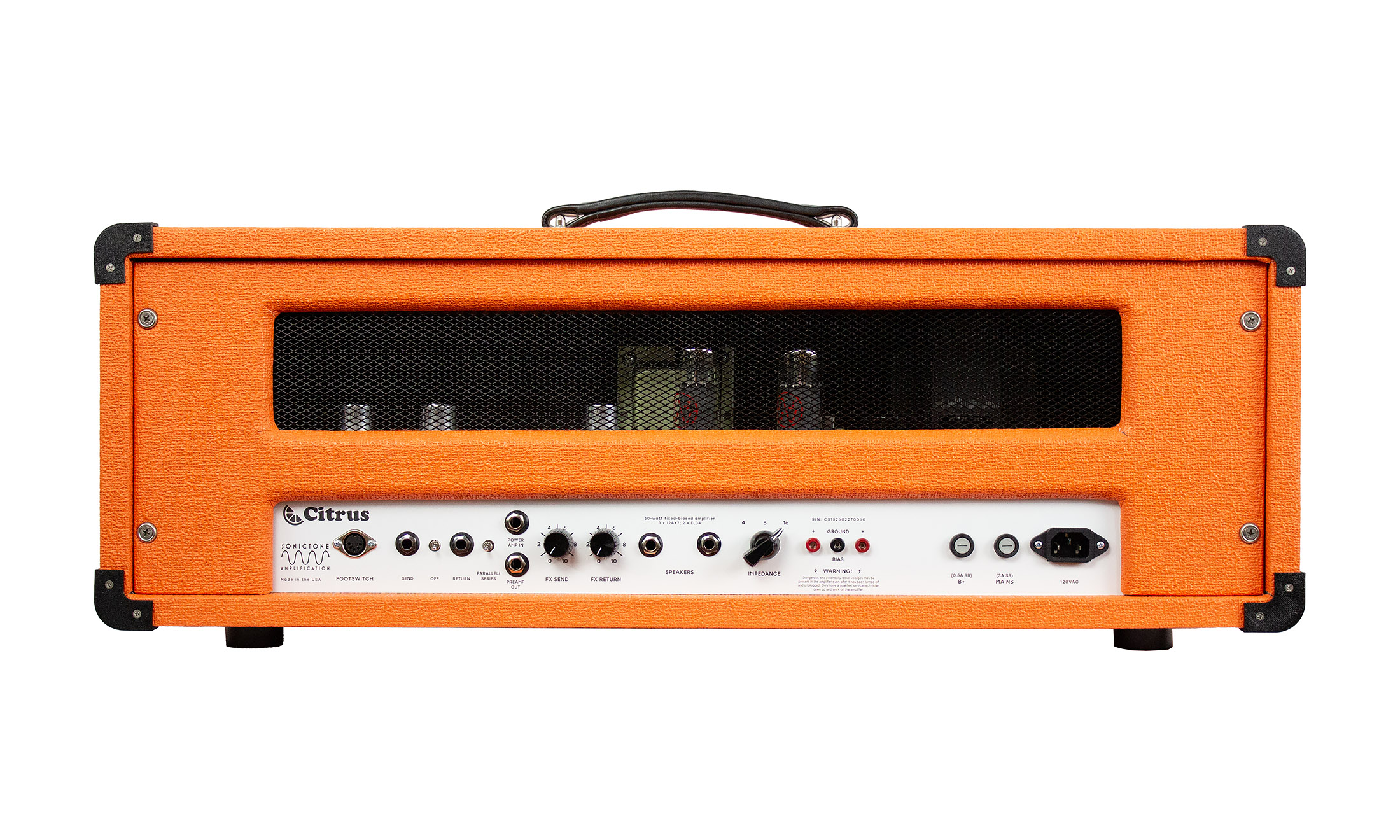

• Bypassable and footswitchable tube-driven FX loop
• FX loop series/parallel switch with send and return controls
• Mono preamp out & mono power amp in jacks
• 2-button footswitch

Dimensions

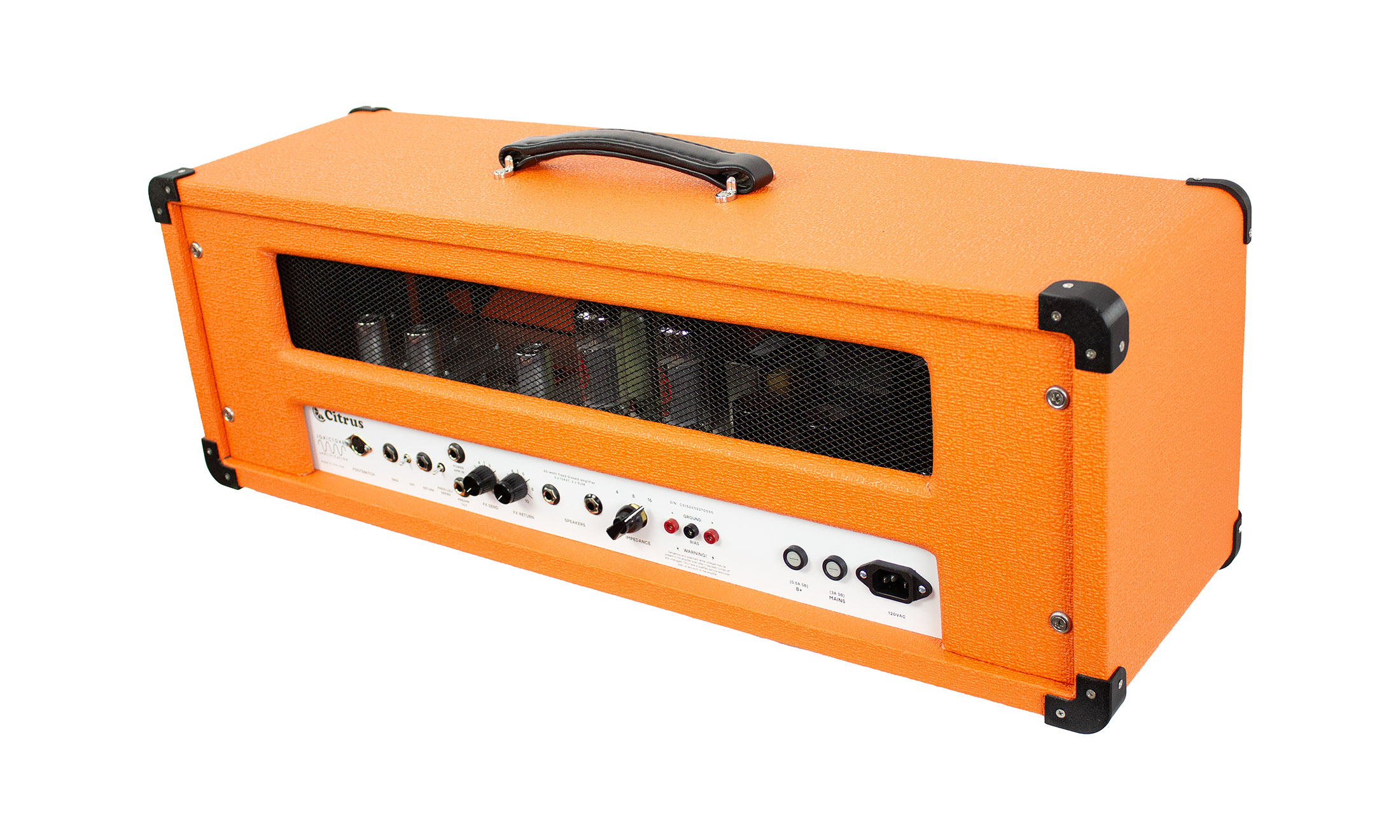

50-Watt Smallbox Head:
    24.00" W x 10.75" H x 9.00" D, 29.50 Lbs

50-Watt Standard Head:
    30.00" W x 10.75" H x 9.00" D, 32.50 Lbs

50-Watt Smallbox 1x12 Combo:
    24.00" W x 20.75" H x 9.00" D, 51.00 Lbs

100-Watt Standard Head:
    30.00" W x 10.75" H x 9.00" D, 42.50 Lbs

50-Watt Standard 2x12 Combo:
    30.00" W x 20.75" H x 10.00" D, 55.00 Lbs

Documentation

• Owner's Manual
